What an affine IFS actually is

An iterated function system is a small pile of functions that shrink things, and the surprising claim is that the pile has a shape.

Each map in the designer is affine, which is the most boring transformation that still does something interesting: a linear part and a shift.

$w_i(x) = A_i x + b_i, \qquad A_i \in \mathbb{R}^{2\times 2}, \quad b_i \in \mathbb{R}^2.$

The matrix $A_i$ rotates, scales, and skews; the vector $b_i$ slides the result somewhere. That is exactly what a control point in the designer is. When you drag a point you are moving $b_i$. When you hold Ctrl and turn it you are rotating $A_i$, and Alt and Shift get you the scale and the skew. The gizmo drawn around each point is a picture of $A_i$.

The one condition that matters is that each map has to be a contraction: there is some $s_i < 1$ with

$\lVert w_i(x) - w_i(y) \rVert \le s_i \lVert x - y \rVert$

for every pair of points. Applying $w_i$ moves any two points strictly closer together. Everything below depends on that and on nothing else.

The Hutchinson operator

Take a compact set $S$ in the plane. Apply every map to the whole of it, and union the results:

$W(S) = \bigcup_{i=1}^{N} w_i(S).$

That is the Hutchinson operator, and it eats a shape and produces a shape. It is the entire content of an IFS. Everything the designer does is either computing $W$ or arranging for something else to compute it for you.

Here is the good part. $W$ is itself a contraction, not on points but on sets, once you measure the distance between two compact sets with the Hausdorff metric. Its contractivity is $s = \max_i s_i$, still less than one. Banach’s fixed point theorem then does what it always does: there is exactly one compact set $A$ with

$W(A) = A,$

and starting from any nonempty compact $S_0$ and iterating $S_{n+1} = W(S_n)$, the sequence converges to $A$. Not usually. Always. It does not matter whether you start with a square, a circle, or a single dot.

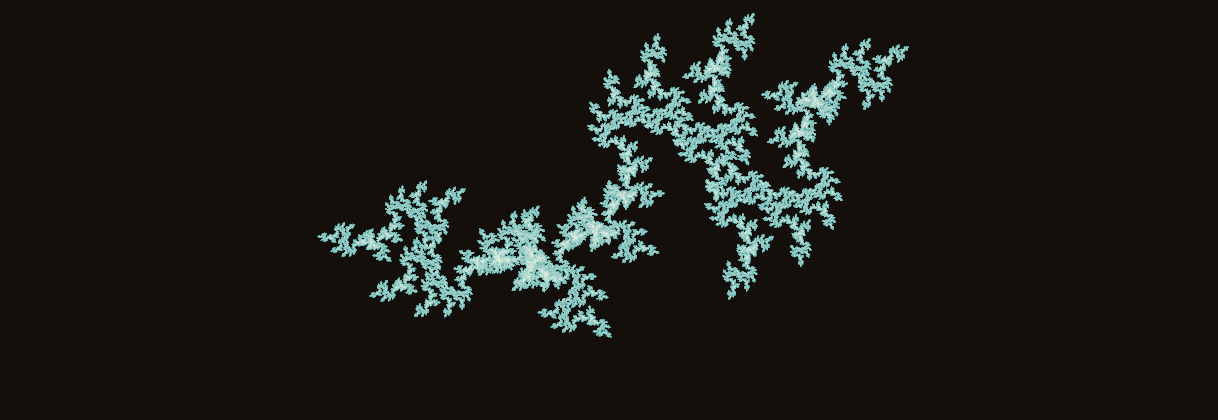

That set $A$ is the attractor, and it is the thing every renderer on the site is trying to draw. It is defined by the maps and by nothing else — not by the starting shape, not by the algorithm, not by the resolution of your screen. Which is precisely why five different renderers have to agree, and why it means something when they don’t.

Why the picture has holes in it

The attractor is a fixed point of a set-valued map, and there is no reason for it to be a nice region. Usually it isn’t. If the maps shrink hard enough that their images don’t overlap much, $A$ ends up with empty space at every scale, and its area is zero.

That last part is not a technicality. It is the central practical fact about rendering an IFS, and I spent a while relearning it the hard way. The attractor typically has measure zero: it covers no area at all. Whatever you draw on a pixel grid is not the attractor, it is a picture of a neighbourhood of the attractor, and every algorithm has to decide what to do with a branch of the set that has become thinner than one pixel. The choices are to round it up to a full pixel, round it down to nothing, or carry a fraction. Two of the three are wrong in ways that take a while to notice.

The collage theorem

The other half of Barnsley’s idea runs backwards, and it is the reason the designer is a designer and not a viewer. Suppose you have a target shape $T$ — a fern, a coastline, your own handwriting — and you want maps whose attractor looks like it. You don’t have to solve for them. You just have to cover $T$ with small distorted copies of itself, and then read the maps off the copies.

Formally, if you can find maps such that $W(T)$ is close to $T$, then the attractor is close to $T$ too:

$d(T, A) \le \frac{d\bigl(T, W(T)\bigr)}{1 - s}.$

Make the collage error small and the attractor error is small, inflated by $1/(1-s)$. That is the whole game. You never manipulate the fractal directly. You arrange a few affine copies of a shape so they tile the shape, and the fractal follows.

Which is what you are doing when you drag the control points around: assembling a collage and watching the fixed point of your collage rearrange itself to keep up. The maps are the object. The fractal is a consequence.

Three ways of computing that consequence follow. The chaos game samples the attractor with a random walk. The collage run backwards iterates $W$ on the pixel grid directly. Escape time without the escape never computes $W$ at all and asks a different question entirely.
